Type: crude oil refining from palm oil
Material: crude palm oil
Capacity: 50-1500T/D
Major equipment: magnetic drum, cleaning sieves, sheller, crusher, flaking roll, cooker, softening pot, puffing machine, plate type drier
Application: high efficiency oil refining from crude palm oil with low energy consumption and oil yield
Palm Oil Refinery Flow Chart:
Basing on the traditional oil refining technology, our company has developed the latest combined packing layer plate deodorization soft tower and the physical and chemical mixed refining technology for crude oil of any quality. Moreover, a series of advanced technology and equipment are used, such as super wet deguming, bleaching earth automatic metering, negative pressure decoloring, high vacuum steam jet deodorization, deacidification, winterization dewaxing etc. With advanced technology, superior equipment, full-automatic control and excellent economic and technical parameters, our equipment can meet customers’ different refining requirements at home and abroad.
Degumming and Deacidification Section:Palm oil degumming and deacidification section uses washing method to separate soap residual from mixing oil, providing preparation for next step palm oil refinery process.
Decolorizing Section:Palm oil decolorizing section is mainly used to remove oil pigment, residual soap and metal ions during palm oil milling process.
Deodorization Section:Palm oil deodorization section composes of part of crude palm mill processing equipment. It plays important part in improving oil quality after crude palm oil process.
Crude Palm Oil Refing Plant

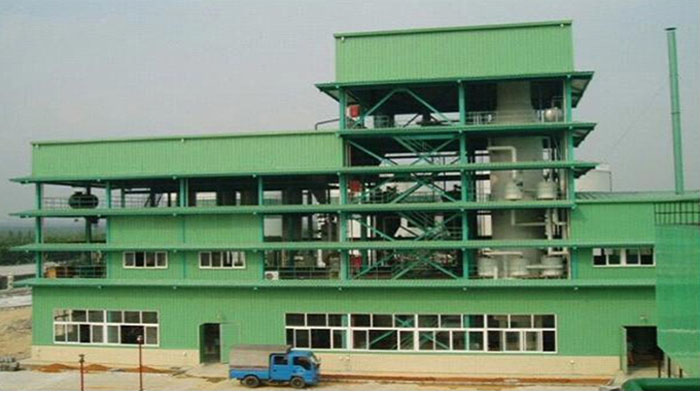

Palm oil refining workshop
Featured advantages of palm oil refining process:
◆Advanced crude palm oil refining equipment configuration and precise equipment manufacturing
◆Automatic control system
◆Excellent technical and economical indicators
◆Meeting customers’ different palm oil refining requirements at home and abroad
◆Palm oil refinery covers entire processing line of degumming and deacidification, blenching, deodorization and fractionation.
Fractionation Equipment List:
1.Crystallizer tank
2.Reducer
3.Filter
4.Filter cloth
5.Refrigerator
6.Steam distribution tank
7.Circulating water pump
8.Filter oil pump
9.Palmitin oil pump
10.Stearin oil pump
11.Cleaning oil pump
12.Cooling and circulating water pump
13.Cooling and circulating water pump
14.Evaporator circulating water pump
15.Cooling and circulating water pump
16.Palmitin oil tank
17.Washing tank
18.Purge tank
19.Stearin melting tank
20.Refrigerating water tank
21.Cool water tower
22.Crude oil heater
