Two Class Squeezing Worm Structure Schematic Diagram (A) of 6YL Oil Press Machinery

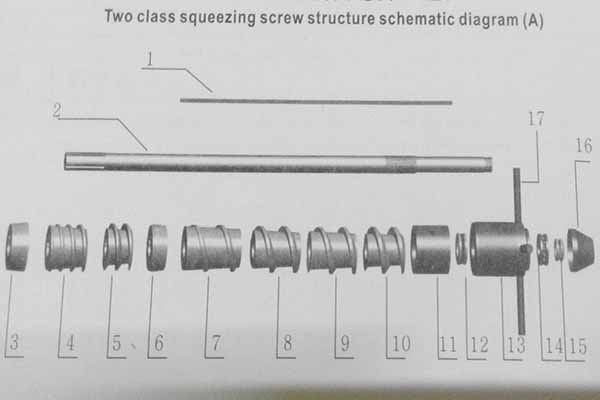

Two class squeezing screw structure schematic diagram a

Item Description Qty per set Item Description Qty per set
1 Long falt key 1 10 Worm NO.1 1
2 Screw shaft 1 11 Press nut 1
3 Cake guide ring 1 12 Bearing 1
4 Worm NO.7 1 13 Adjusting bolt 1
5 Worm NO.6 1 14 Bearing 1
6 Worm NO.5 1 15 Tight nut 1
7 Worm NO.4 1 16 Safe cover 1
8 Worm NO.3 1 17 Big handle 1
9 Worm NO.2 1
